TITAN dump trailers adopt high strength steel to make it durable when loading the sand or small stones or rocks. And the loading capacity is 40t, 60t, 80t.
TITAN Tippers equipped with reliable hydraulic HYVA cylinder. We can customize the tipper trailers according to your special needs, like U shape dump, end dump, side tipper, and container tippers including skeleton and flatbeds trailers.
We use the well-known brand axles, FUWA, BPW. It’s with high performance, and reliable to use.
33 Cubic Meters Dumper Trailer

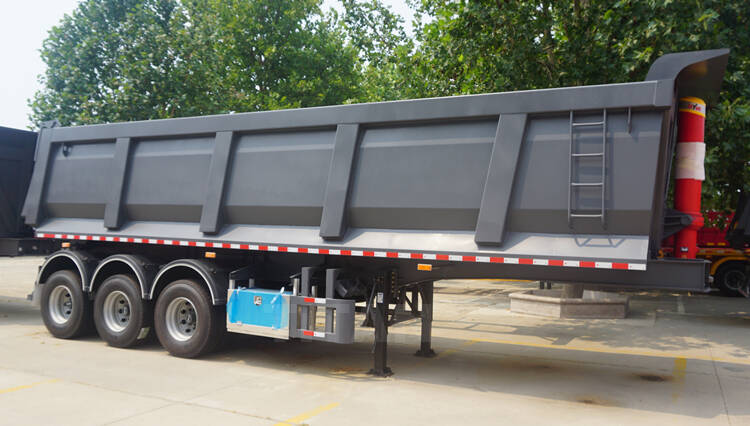

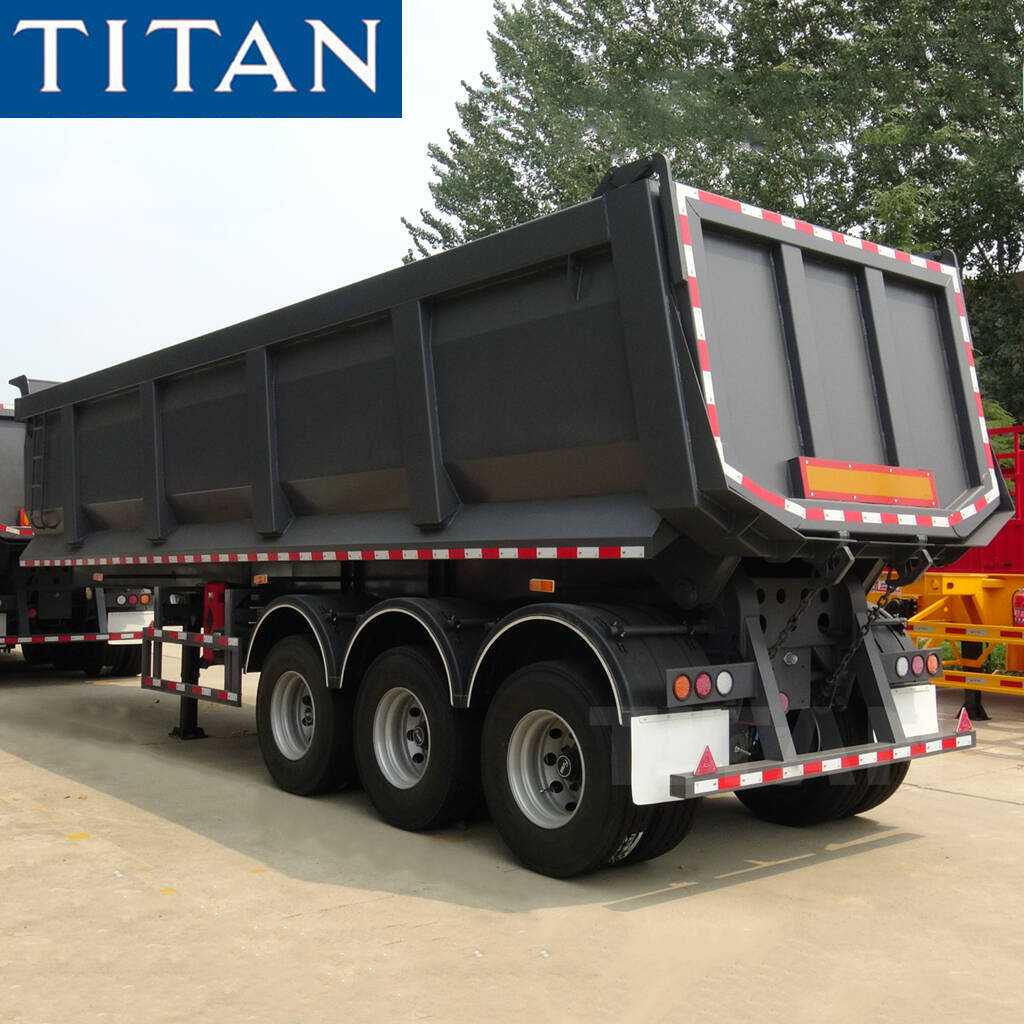

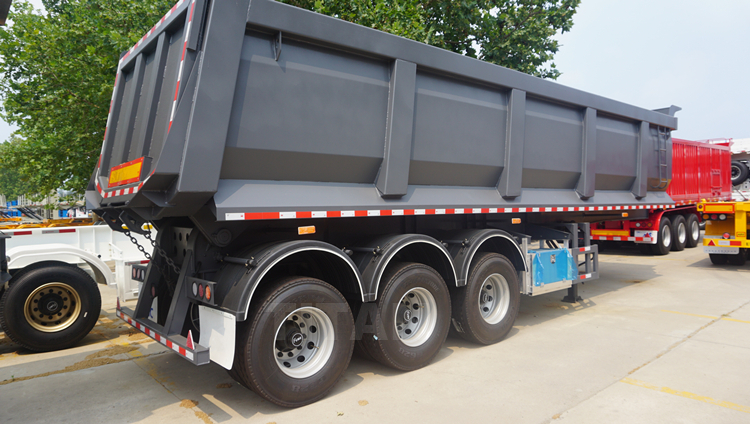

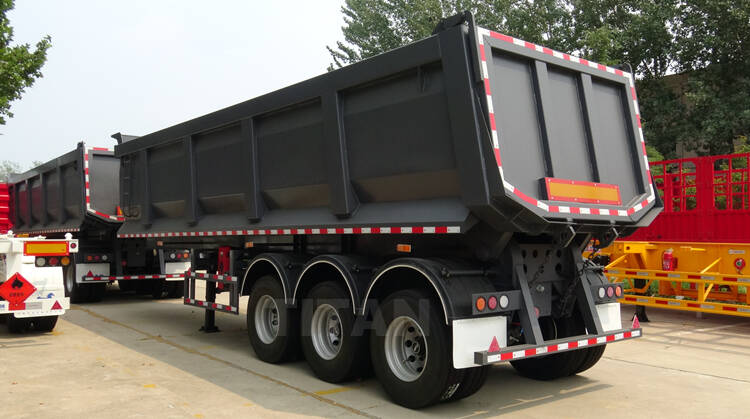

U shape dump semi trailer
1. Double-plate main beam for heavy-duty dump trailer, which have stronger carrying capacity, it is not easy to damage.
2. Hydraulic cylinder: The heavy-duty cylinder with a wider diameter, stronger lifting capacity and higher height, which makes the lifting more stable and does not easy to roll over.
3. with 4 units vice beam and cross balance beam. The lattice structure of the side door makes the side door more solid.
4. Flip Bracket: 4 units flip brackets, which can make the rear end more evenly loaded during unloading, and it is not easy to damage the trailer.
5. The leaf spring is widened and thickened, the shock absorption effect is good.
6. Strengthened Ribs, unique structure design to maximize the payload.
Overall dimension：9300mm * 2500mm *1600mm
Volume : 33CBM
Axles：3 axles
Suspension：Heavy duty mechanical suspension
Tipping system: 196 hydraulic cylinder
Tire：12 units
King pin：90#
Landing gear：JOST
Brake system: WABCO
Electrical system: 24V, LED lights
Through these videos, you can learn about different types of semi tipper trailers, as well as the process, testing, packaging and customer feedback, etc.

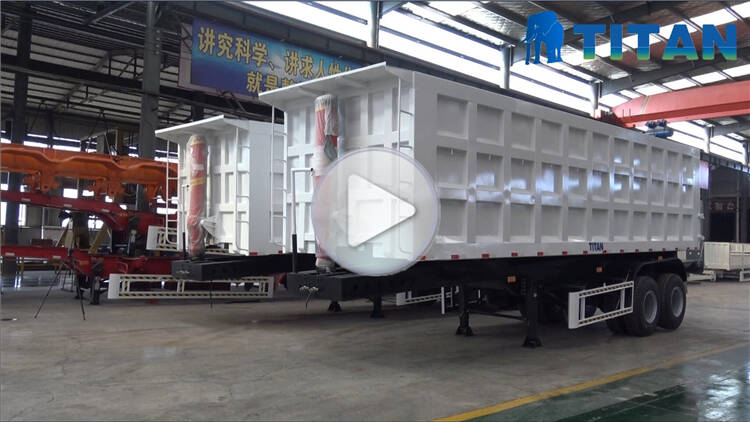

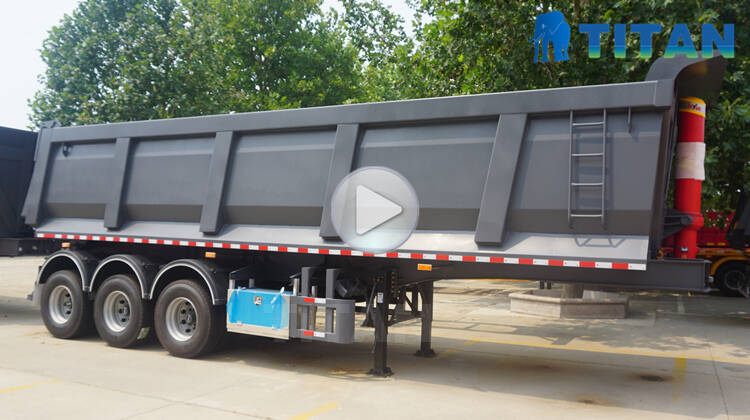

Triple axle dump trailer detail show video
