6 Axle Extendable Semi Trailer will be sent to Mauritius.
6 Axle Extendable Semi Trailer for Sale In Mauritius

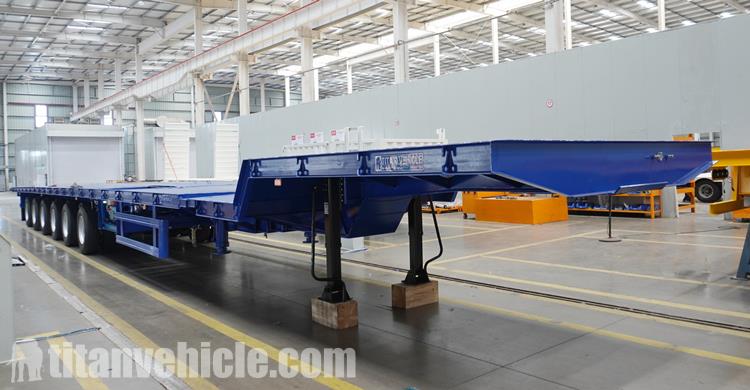

Customers from Mauritius ordered TITAN 6 axle extendable trailer. They mainly transport large fans. In 2019, the customer has purchased 2 units extendable lowbed trailer from TITAN. The customer has expanded his business and is in urgent need of a semi-trailer, so he seeks our help. We recommended the most suitable 6 axle extendable semi-trailer for the customer. Below is the semi-trailer that has been completed.
The extendable semi trailer main structure has FOUR distinct features constructed of a high strength design and material to enhance its function and operations. This broadens the scope of use for this kind of trailer especially for handling different types of loads and for transportation on different terrain. They include the Gooseneck, the Steering Structure, the extendable beam and the tail platform.
62M Extendable Semi Trailer for Sale Price
Gooseneck
The point of connection between the extendable semi trailer and the truck is a Gooseneck design. Commonly, the gooseneck can lift up and down to meet the different heights of the 5th wheel of a truck. When the truck steers, gooseneck can pass the signal, and the trailer starts to steer.
Steering structure
Steering is a very important aspect of this kind of trailer. Therefore, there is a steering structure designed to meet efficient steering capabilities during transportation. Because the 6 axle extendable semi trailer length can be up to 62m, commonly rear axles need a steering function to help the trailer get through a curved road. There are three steering structure configurations to help this trailer navigate well on the road.

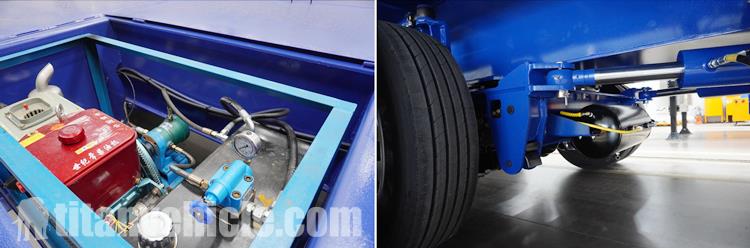

1. Hydraulic Bogies
This hydraulically controlled design is meant to achieve a ±55° Steering Angle. The structure is of a more tough design and construction aimed at making it efficient in steering.
However, due to the hydraulic attachments and other elements of the system, it is expensive. On some occasions as the need would arise, the hydraulic bogies can also be controlled remotely by using a controller.

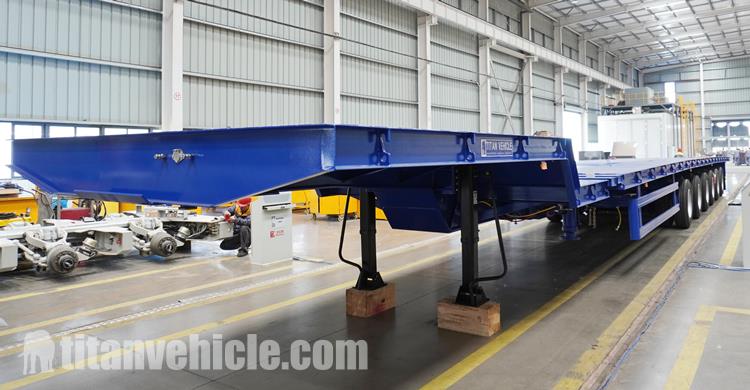

Factory Show of 6 Axle Extendable Semi Trailer for Sale Price
2. Turntable steering
The turntable steering design is meant to attain a ±45° steering angle. The 62 m extendable semi trailer can steer by a steering turntable through axles installed on turntables.
This design ensures high reliability. However, it is relatively costlier compared to other designs.
3. Self-steering Axles
This is a steering structure design with an axle steering of ±45° angle. It is a simple steering structure that is easy to use and maintain.
Details of 6 Axle Extendable Lowbed Trailer
Extendable beam
The extendable trailer comes with the capability of adjusting it to its desired length for taking different lengths of loads as desired in a given application.
That way, a room can be created to take up bigger loads. The extendable part is therefore made tougher for the reason of preventing sagging due to too its length. That way, safety is enhanced during transportation from one point to another.

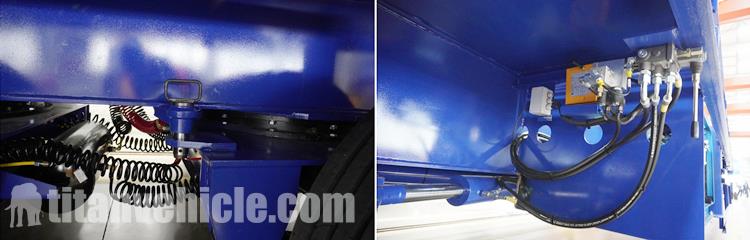

The extendable beam also serves other functions in supporting the functionality and operations of the entire 6 axle extendable trailer. Ideally, this is where hydraulic oil tubes and electric wires are also installed.
They are needed for passing signals from the gooseneck to their receptors.
Most importantly, the extendable beam can have 2- 4 levels of extension. The trailer can, therefore, be made shorter or longer using these extensions depending on the size and nature of the load that needs to be transported.

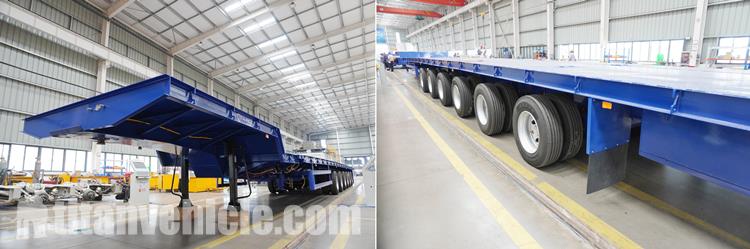

6 Axle 62M Extendable Semi Trailer with Best Price
Tail platform
In order to make the extendable trailer carry longer cargo, there is always a tail platform provided in the trailer. This ensures that the load is perfectly held together during loading, transportation and offloading.
To suit different applications and use, there usually are two structure types of the tail platform. In this arrangement, the tail platform is designed to fold back on the extendable beam when not in use. To take up a bigger load, it is usually unfolded from its resting position when not in use.
A pulling tail platform design is designed to pull out when needed for use and be pushed back when not in transportation.
Material
Trailer construction materials are chosen based on the amount of load it is expected to carry and the force acting on the bed during loading, transportation and offloading. Other considerations include the size and dimensions in general. The extendable trailer’s max length can be up to 62m, and a capacity of 30tons (when it is extended).
For that reason, the choice of material is very key in the manufacture of this kind of extendable trailer. We use Q460 material (with a yield strength of 460Mpa) to make the trailer. The choice has been made based on research and has been tested on various scenarios before being released into the market.

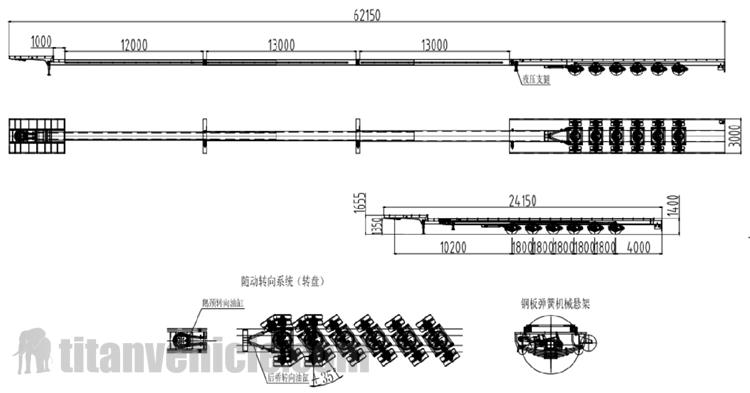

Drawing of Extendable Semi Trailer for Sale Price
