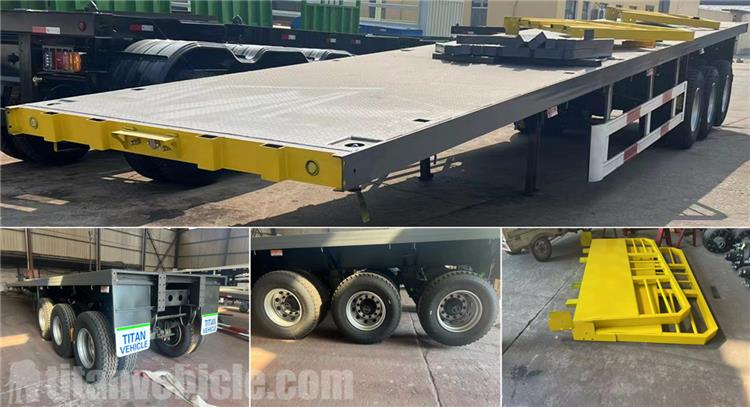

12.5m Tri Axle Trailer with Front Wall for Sale In Ghana
Thank you to our client from Ghana for choosing TITAN. The client mainly transports bulk cargo. This is the first time the customer to use a flatbed semi trailer. Customers value the quality of our semi trailer and our professional after-sales service.
For customers who use the tri axle trailer for the first time, a professional after-sales service team is crucial. Thanks to our Ghana customers very much for their trust and support. This customer chose our most popular 12.5m tri axle trailer. And the front wall is installed for the customer.
The 12.5 m tri axle trailer safety protection device is called "life guardrail", mainly to prevent motor vehicles, non-motor vehicles, pedestrians and trucks from rear-end collision or scraping traffic accidents, directly impact and drill into the rear of the 12.5 m tri axle trailer Or a safety guard provided by the 12.5 m tri axle trailer being rolled into the bottom from the side.
Sufficiently strong guards can prevent the car from digging into the bottom of the 12.5 m tri axle trailer, the huge impact force generated during a rear-end collision will be absorbed by the front area of ??the car, while insufficient truck guards will cause the car to be "eaten" by the rear of the truck.
12.5m Tri Axle Trailer with Front Wall for Sale In Ghana

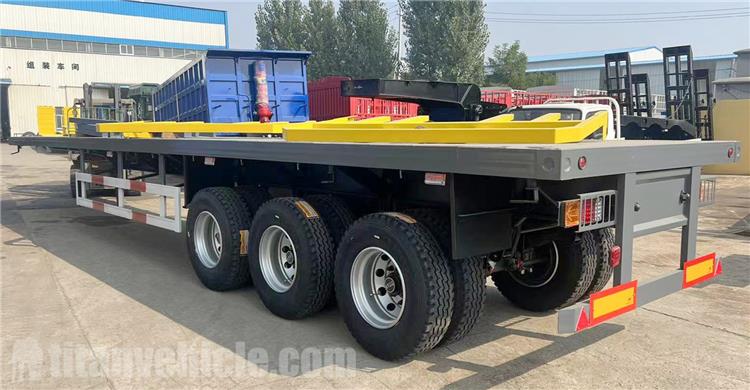

12.5m Tri Axle Trailer Side Guards
1. It can be a continuous plane, or composed of one or more crossbars, or a combination of a plane and a crossbar. When a crossbar structure is used, the distance between the crossbars should not be greater than 300mm.
2.12.5 m tri axle trailer side guards shall have a leading edge of a continuous vertical member throughout its entire height, with the outer and front faces of the vertical member at least 50mm rearward, 100mm inwardly curved, or a minimum radius of 50mm , at least a quarter arc. When the 40 ft tri axle trailer collides with pedestrians, the inner curved arc of the side protection can effectively prevent people from being drawn under the vehicle.
3. The side guards should have a certain rigidity, and the fixing should be firm and not loose due to vibration.
4. Requirements for the distance between the side guards of the Flatbed trailer and the height from the ground:
The height of the lower edge of the side guardrail from the ground shall not be greater than 55cm.
The distance between the upper edge of the side guardrail and the bottom edge of the carriage shall not be greater than 35cm. The distance between the crossbars shall not be greater than 30cm. , The outermost edge of the rear tire shall not be larger than 30cm
12.5m Tri Axle Trailer with Front Wall for Sale In Ghana

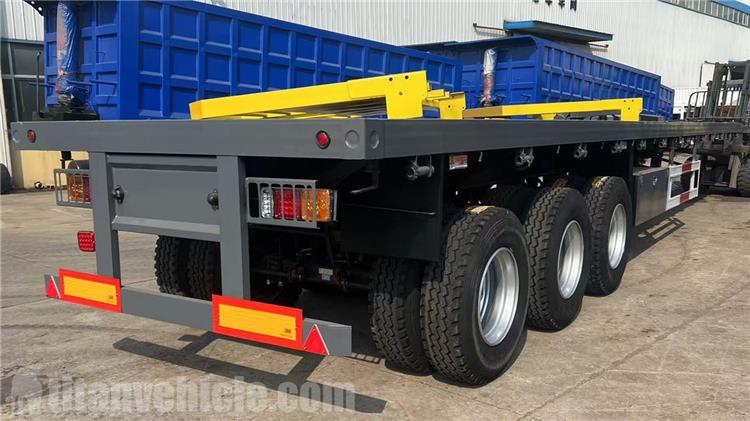

Tri Axle 40 ft Flatbed Trailer Rear Lower Guard
The Tri axle trailer for sale is fitted with a rear under guard to protect the vehicle behind the flatbed trailer.
However, due to the issue of body height, the height of the front side buffer of the sedan is lower than the ground clearance of the rear of the tri axle trailer. In the event of a rear-end collision, the car will often go directly to the bottom of the tri axle trailer for sale, and the buffer zone will not work at all, resulting in fatal accidents for the occupants of the car.
Therefore, it is mandatory to install a rear and lower protection device that meets the regulations at the rear, so as to effectively minimize the casualty in traffic accidents.
12.5m Tri Axle Trailer with Front Wall for Sale In Ghana
1. Both ends of the cross member of the rear lower guard shall not be bent to the rear of the vehicle and shall not have sharp outside edges; the flatbed trailer for rear-end collision shall have sufficient resistance in the direction parallel to the longitudinal axis of the tri axle trailer for sale ability to prevent drill-in collisions.
2. Requirements for the distance between the rear and lower guardrails and the height from the ground:
When the tri axle trailer for sale is unloaded, the height of the lower edge of the rear lower protection from the ground shall not be greater than 50cm. The edges on both sides of the rear lower guardrail and the outermost end of the tire shall not be greater than 10cm.
The rear lower guardrail should not be more than 40cm inward from the rear end of the vehicle. The section height of the lower guardrail after light and medium cargo shall not be less than 10cm, and the section height of the lower guardrail after heavy cargo shall not be less than 12cm.
12.5m Tri Axle Trailer with Front Wall for Sale In Ghana
